Author Topic: Bedding a stock  (Read 1546 times)

Offline Sabotloader

  • Trade Count: (0)
  • Sourdough
  • *****
  • Join Date: Apr 2011
  • Posts: 2309
  • Location: Idaho, Northern
Bedding a stock
« on: November 03, 2015, 08:46:21 AM »
Recently Sqezer and I swapped out a stock for a MK 85. He wanted a wooden one and I want a composite thumbhole.  This stock when the gun was mounted allowed the rifle to rock back and forth and I knew it need to be bedded. I told LeRoy about it and he said he would do it and really wanted it for a build he was doing for a young man.

I really did not know the Sqezer was such an ARTIST...  Here are the pictures of the job and he will come by and post the information...

Receiver bedding

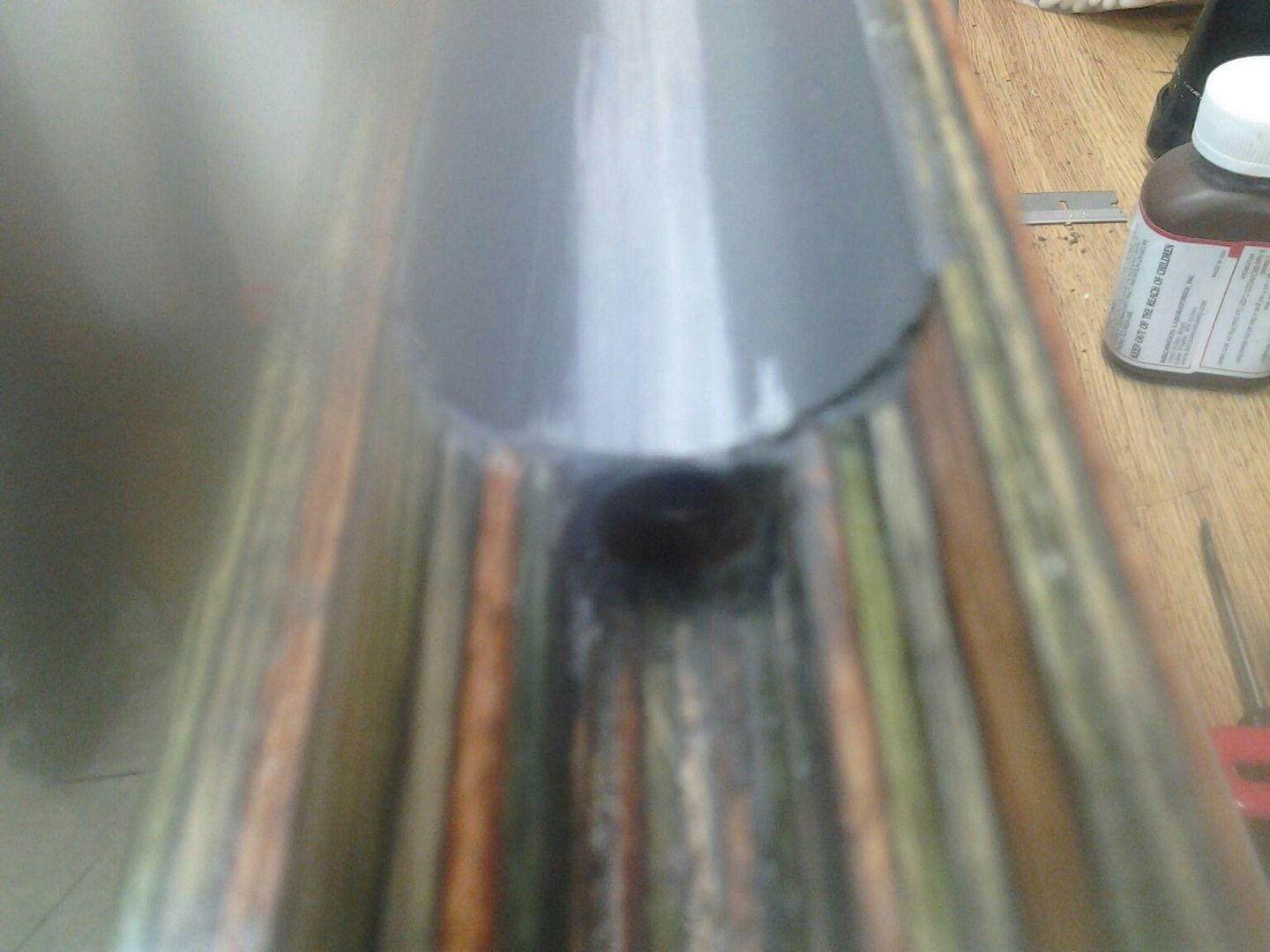

Bedding to allow ram rod to be inserted into the rifle.



And the completed project.

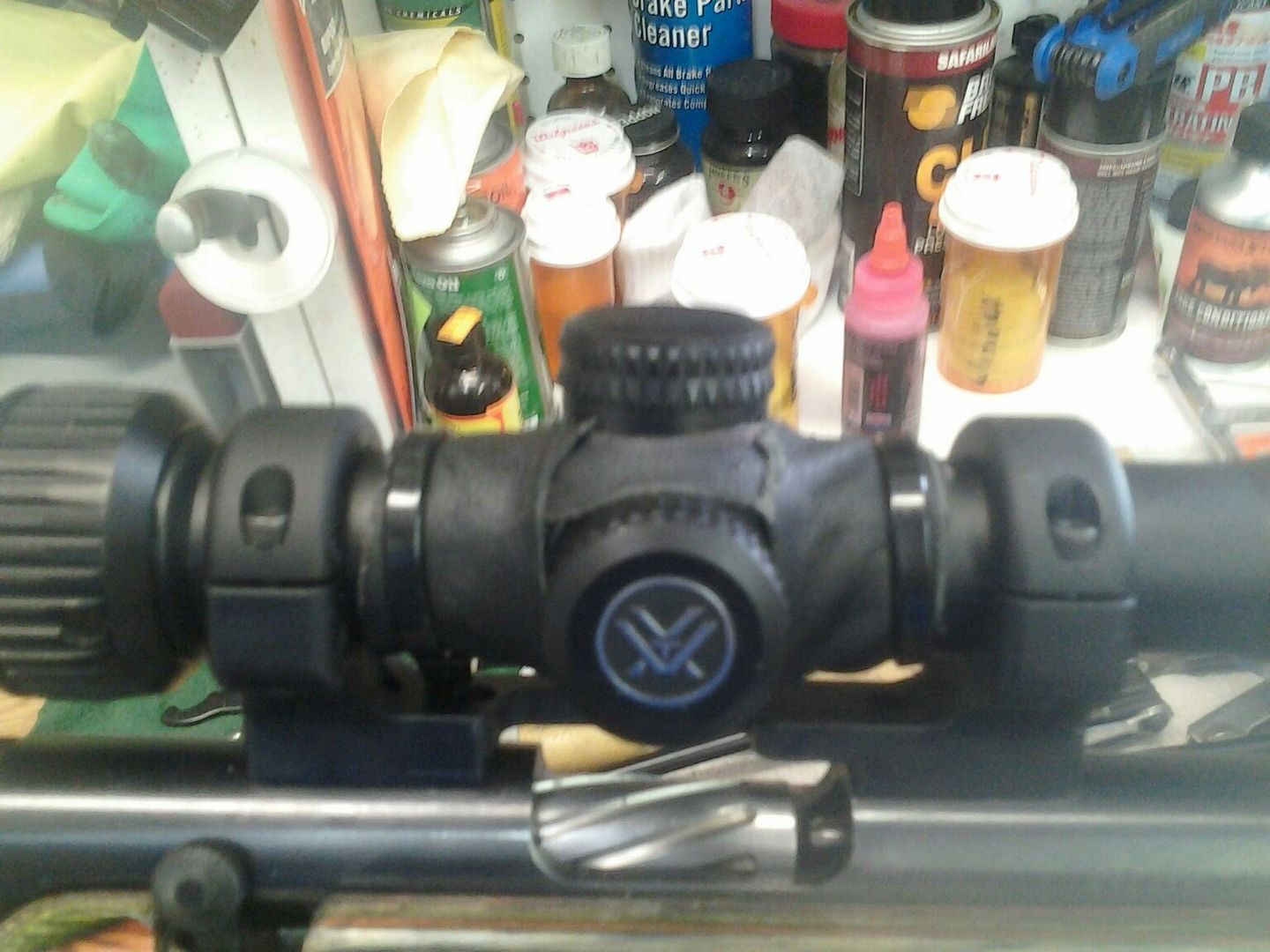

As an added touch he used a Custom Fluted Lehigh 209 Hammer




Looks to me like a first class job.

« Last Edit: November 03, 2015, 08:57:53 AM by Sabotloader »
Keep shooting muzzleloaders - They are a blast!!

Offline elkboy

  • Political & Covid-19 Topics
  • Trade Count: (0)
  • Sourdough
  • *****
  • Join Date: Dec 2010
  • Posts: 1808
  • Location: Corvallis, Oregon
Re: Bedding a stock
« Reply #1 on: November 05, 2015, 09:28:26 PM »
Looks great!  Makes me want to drive the six miles just to take a look!  Kudos to your talented buddy, Sabot.

Offline Sabotloader

  • Trade Count: (0)
  • Sourdough
  • *****
  • Join Date: Apr 2011
  • Posts: 2309
  • Location: Idaho, Northern
Re: Bedding a stock
« Reply #2 on: November 06, 2015, 09:23:31 AM »
Re: Bedding a ML stock

Postby sqezer » Fri Nov 06, 2015 1:20 am

Thanks Mike, I came up with the arrow shaft idea by trying to build a better mouse trap, after doing a few and not getting the looks I wanted I thought there has to be someway to make the bedding job look great. After inletting the barrel, I try to have 1/16" around the sides of the barrel so the bedding doesn't break out, then I took a 2213 aluminum arrow cut it 3" long laid it into the stock up to where the recoil lug butted up to it. I like to bed 3" from the recoil lug foreword, to make sure I had enough space between the arrow and barrel I cut strips from a back tag to use as a gauge, I lay 2 strips on top of each other replaced the barrel and had plenty of space for the bedding compound. The trigger area I fill with modeling clay and also the bolt or safety cut out. I wrap 3-4-5- wraps of Blue Painters tape around the barrel up toward the end of the forearm to keep the barrel centered in the stock. The (ramp) is very important for accuracy, the ramp is the area just behind the recoil lug & in front of the trigger along with the very back of the barrel on the LK-93, these areas I use a 1/8" drill bite and put 4-5 hole for anckor points, some are at a 45 degree angle. Once the prep is done I go back and bed the arrow into place and let set for 5-6 hours, t keep the bedding compound in place I use 1/4" door foam as a bridge, in front of the arrow and also behind the arrow.

Now this is very important, I use 1 wrap of electrical tape around the recoil lug, the whole barrel gets a coating with Johnsons Floor Wax, inside the recoil lug along with the recoil bolt, inside where the bolt goes through the stock so nothing will stick. Before I do the recoil bolt I wrap that with tape so to hold it in place in the stock when I apply the bedding compound, where the front of the arrow is I create a dam using 1/4" door foam to keep the bedding compound in place. I use JB-Weld Industrial and it works great, I mix it up pour it into the stock and let it run to where it need to be, lower the barrel slowly onto the recoil bolt and tighten down slowly, clean up the overflow as needed and let set overnight. In the morning loosen up the stock bolt a few turns and give the bolt wrench a sharp blow with a small hammer and everything should break free. If you have any questions just give me a shout. THANKS.
Keep shooting muzzleloaders - They are a blast!!
